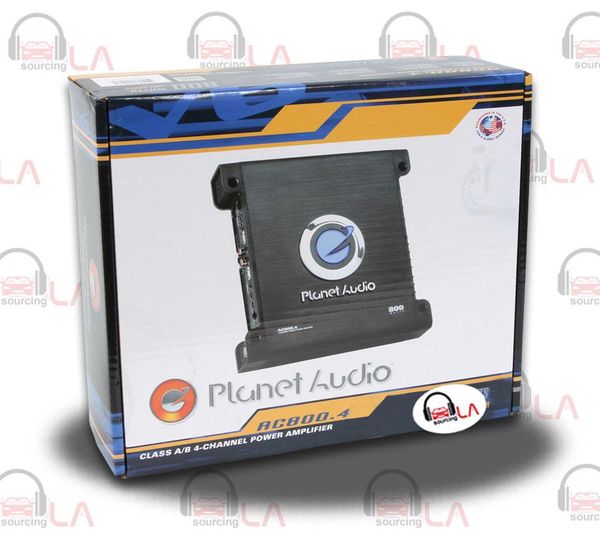

Planet Audio AC800.4 Anarchy 800-watt 4 Channel Full Range Class A/B Amplifier

Technical Specifications

• Total Power Output: 800 Watts
• Peak Power @ 2 Ω: 200 Watts x 4
• Bridged Power @ 4 Ω: 400 Watts x 2
• RMS Power @ 4 Ω: 75 Watts x 4
• Channel Separation =: 90 dB
• S/N Ratio (A-Weighted): 88 dB
• Frequency Response: 20 Hz to 20 kHz ±1 dB

Connections

• RCA Inputs: 4 Channel
• High Level Inputs: Yes
• Low Pass Filter 45 Hz to 90 Hz
• High-Pass Filter: Fixed Hz 80 Hz
• Bass Boost: Variable 0 to 18 dB
• Input Sensitivity Switch: Yes
• Thermal/Overload/Short Protection: Yes

Physical Characteristics

• Length: 10"
• Width: 10.66"
• Height: 2.4"
